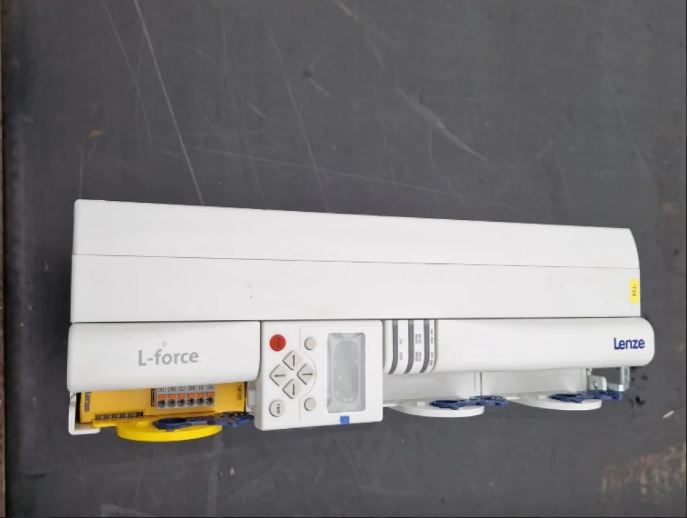

Lenze E94AMHE0094 Inverter | 9400 HighLine Servo Drive, 9.3A, 4kW

Product Overview

The Lenze E94AMHE0094 inverter is a high-performance servo drive from the Lenze 9400 series HighLine range, built for precise, efficient motor control in industrial automation. As a Multi Drive axis module, the Lenze E94AMHE0094 inverter runs from a 565VDC rated bus voltage with a DC bus supply range of 260 to 775V. This makes it a good fit for multi-axis machines where several drives share one common DC link.

With a rated output current of 9.3A and a typical motor power of 4kW, the Lenze E94AMHE0094 inverter suits medium-sized servo motors. It operates at a switching frequency of up to 8kHz for smooth, responsive speed and torque control, and it keeps performance stable during acceleration, braking and rapid load changes. That consistency improves machine accuracy, reduces mechanical wear, and helps lower maintenance costs over the equipment’s lifetime.

Connectivity is a strength of this drive. It is multi-axis capable, with encoder and resolver inputs, and supports a wide choice of fieldbus options: CANopen, EtherCAT, PROFINET, PROFIBUS, EtherNet/IP and DeviceNet. The IP20 enclosure is designed for panel and rail mounting inside control cabinets, and the unit weighs approximately 5.1kg. Made in Germany, the Lenze E94AMHE0094 inverter combines precision, flexible networking and energy-efficient control for demanding 9400 series servo systems.

Key Features of Lenze E94AMHE0094 inverter

• Lenze 9400 Series HighLine Drive: Intelligent, flexible servo system platform
• Multi Drive Design: Shared DC-bus operation at 565VDC for multi-axis systems
• Wide DC Bus Range: 260 to 775V DC supply range
• 9.3A Rated Output Current: Suited to medium-sized servo motors
• 4kW Typical Motor Power: Strong, efficient control for demanding axes
• 8kHz Switching Frequency: Smooth, accurate speed and torque regulation
• Multiple Fieldbus Options: CANopen, EtherCAT, PROFINET, PROFIBUS, EtherNet/IP, DeviceNet
• Encoder and Resolver Inputs: Precise feedback for multi-axis control
• IP20 Protection: Panel and rail mounting in control cabinets
• Made in Germany: Lenze L-force quality and reliability

Applications Lenze E94AMHE0094 inverter

The Lenze E94AMHE0094 inverter suits a wide range of servo-driven processes:

• Conveyor Systems: Accurate, adjustable-speed axis control
• Packaging Equipment: Synchronized, responsive motion for packaging lines
• Robotics: Precise servo control in automated cells
• Multi-Axis Machines: Axis module for shared DC-bus systems
• Printing and Converting Machinery: Fast, repeatable positioning
• General Automated Machinery: Servo-driven processes needing consistent output quality

Technical Specifications

Included Modules (as per unit nameplate)
