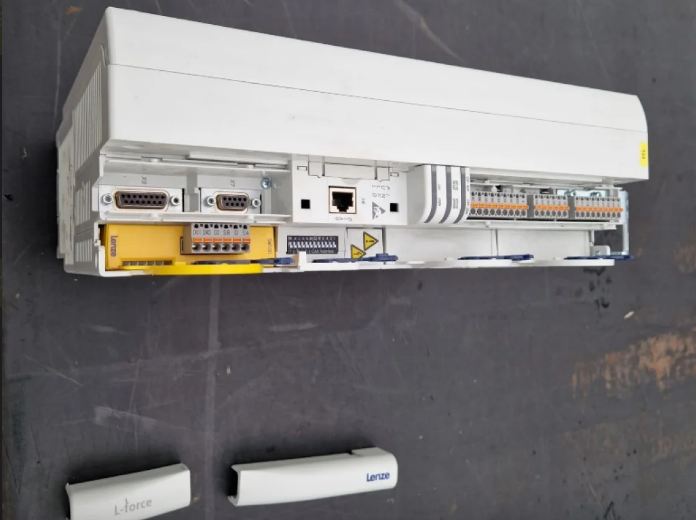

The Lenze E94AMHE0134 inverter is a high-capacity, speed-adjustable drive from the Lenze 9400 series, built for precise control of three-phase motors in industrial machinery. It takes a DC-bus input (325/565/675V, up to 20.6A), which makes the Lenze E94AMHE0134 inverter a good fit for multi-axis machines where several drives share one common DC bus.
On the output side, the Lenze E94AMHE0134 inverter delivers 3-phase AC at 0-230/400/480V with a rated current of up to 13.0A. Its output frequency range of 0-599Hz covers both standard-speed and high-speed motor applications. A motion control module (4MB) is installed in Slot 3, giving the drive onboard capability for coordinated machine control. Slot 4 is fitted without safety function, and Slots 1 and 2 remain free for future expansion.
Supplied complete with its mounting unit and housed in an IP20 enclosure, the Lenze E94AMHE0134 inverter is ready for control cabinet installation. For machine builders and system integrators, the Lenze E94AMHE0134 inverter offers dependable performance and flexible integration. Thermal overload protection, or a complete electrical cabinet with cooling, is available on request.
The Lenze E94AMHE0134 inverter suits a wide range of industrial uses:
| Parameter | Value |
|---|---|
| Brand | Lenze |
| Model | E94AMHE0134 (A33NNNN) |
| Date Code | 2124 |
| Enclosure | IP20 |
| Input | 2/PE DC |
| Input Voltage | 325 / 565 / 675 V |
| Input Current | 20.6 / 20.6 / 18.0 A |
| Input Power | 6.7 / 11.6 / 12.2 kVA |
| Output | 3/PE AC |
| Output Frequency | 0-599 Hz |
| Output Voltage | 0-230 / 400 / 480 V |
| Output Current | 13.0 / 13.0 / 11.4 A |
| Output Power | 4.7 / 8.1 / 8.5 kVA |
| Slot 1 | Empty |
| Slot 2 | Empty |
| Slot 3 | Motion control module, 4MB |
| Slot 4 | Without safety function |
| Included | Mounting unit |
| Available on Request | Thermal overload protection; complete electrical cabinet with cooling |
