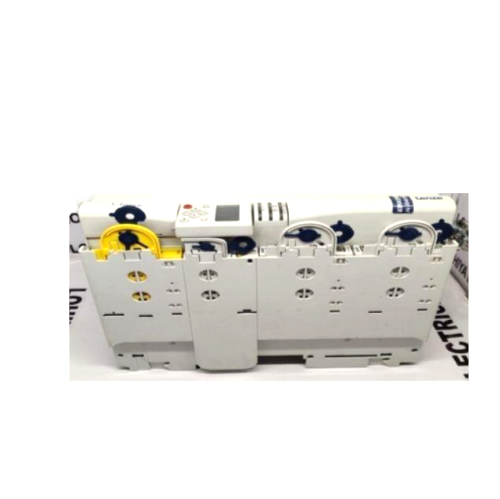

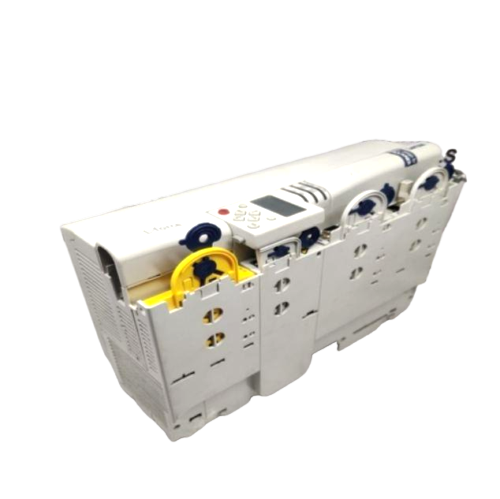

Lenze E94AMHE0244 Inverter | 9400 HighLine Servo Drive, 24A

Product Overview

The Lenze E94AMHE0244 inverter is a high-performance servo converter from the Lenze 9400 series HighLine range, designed for precise, reliable motion control in industrial automation. Lenze describes the 9400 as an intelligent and simple servo system, and the Lenze E94AMHE0244 inverter carries that approach into multi-axis machines. As a Multi Drive version, it runs from a 565VDC rated bus voltage, so several drives can share one common DC link.

With a rated output current of 24A, the Lenze E94AMHE0244 inverter handles demanding servo axes that need strong, consistent output. It operates at an 8kHz switching frequency for smooth, responsive speed and torque control. Its advanced control algorithms keep performance stable through acceleration, braking and sudden load changes. This improves machine accuracy, reduces mechanical wear, and helps lower maintenance costs over the equipment’s lifetime.

The installation design suits cabinet mounting, and the compact build makes it easy to integrate into new or existing machines. For builders looking for a dependable 9400 series drive, the Lenze E94AMHE0244 inverter combines precision, efficiency and flexible integration in one servo converter.

Key Features

• Lenze 9400 Series HighLine Drive: Intelligent, simple servo system platform
• Multi Drive Design: Shared DC-bus operation at 565VDC for multi-axis systems
• 24A Rated Output Current: Strong output for demanding servo axes
• 8kHz Switching Frequency: Smooth, accurate speed and torque regulation
• Advanced Control Algorithms: Optimized performance under dynamic loads
• Compact Installation Design: Easy cabinet integration
• High Precision and Efficiency: Consistent motion quality in continuous operation

Applications

The Lenze E94AMHE0244 inverter suits a wide range of servo-driven processes:

• Robotics: Precise servo control in automated cells
• CNC Machinery: Accurate, repeatable axis positioning
• Automation Systems: Reliable drive control for automated production lines
• Multi-Axis Machines: Axis module for shared DC-bus systems
• General Automated Machinery: Servo-driven processes needing consistent output quality

Technical Specifications
