Modern industrial and automation applications require consistent motor speed control, space-saving cabinet integration, and high energy efficiency. The Lenze ESMD222L4XA Frequency Inverter Drive, a standout model from Lenze’s trusted SMVector series, is engineered to manage 3-phase AC motors with high precision and operational reliability.

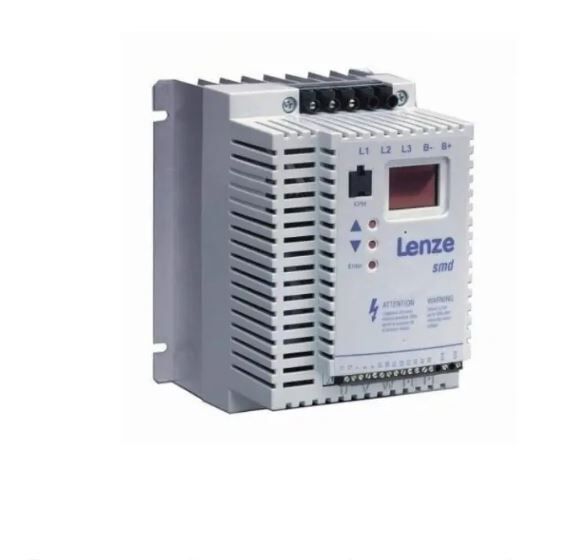

The Lenze ESMD222L4XA Frequency Inverter Drive is an industrial-grade Variable Frequency Drive (VFD) designed for 3-phase 380–480V AC power supplies. Delivering an output power rating of 2.2 kW (3.0 HP), this drive regulates AC motor speed, torque, and direction across an output frequency spectrum from 0 to 500 Hz.
Housed in an IP31 (NEMA 1) rated enclosure, it supports both standard V/Hz control and advanced sensorless vector control. Featuring built-in Modbus RTU communication and an intuitive digital keypad interface, it simplifies setup and ensures continuous factory automation performance.
To assist system integrators, electrical maintenance engineers, and control panel builders, below is the technical parameter summary:
| Technical Parameter | Specification Value / Detail |
| Brand / Manufacturer | Lenze |
| Product Series | SMVector Series |
| Model Number | ESMD222L4XA |
| Power Output Rating | 2.2 kW / 3.0 HP |
| Input Supply Voltage | 3-Phase 380 V to 480 V AC |
| Output Frequency Spectrum | 0 Hz to 500 Hz |
| Control Methods | Sensorless Vector Control & V/Hz Control |
| Enclosure Rating | IP31 / NEMA 1 (Standard Indoor Industrial Use) |
| Ambient Operating Temp | -10°C to +50°C (higher temperatures may require derating) |
| Standard Communication | Built-in Modbus RTU; Optional Fieldbus Modules |
| Internal Safeguards | Short-Circuit, Overload, and Overheating Safeguards |
The operational framework of the Lenze ESMD222L4XA Frequency Inverter Drive optimizes dynamic speed adjustment and motor protection:
Precision Voltage & Frequency Conversion: Converts incoming 3-phase utility grid power into variable output voltage and frequency, matching motor speed directly to real-time process demand.
Sensorless Vector Intelligence: Regulates motor torque accurately under fluctuating load conditions without requiring external feedback devices or shaft encoders.
Smooth Motion Ramps: Enables customizable acceleration and deceleration profiles to protect gearboxes, drive belts, and couplings from mechanical shock.
Integrated Modbus Network Connectivity: Connects directly into plant automation architectures via built-in Modbus RTU (or optional Ethernet/Profibus expansion modules) for remote monitoring, parameter programming, and diagnostic tracking.
Integrating the Lenze ESMD222L4XA Frequency Inverter Drive into industrial control panels offers several key advantages:
Slim & Compact Footprint: Saves valuable enclosure real estate in space-constrained control cabinets.
Broad Output Frequency Spectrum (0–500 Hz): Accommodates standard industrial induction motors as well as higher-speed processing machinery.
Energy-Efficient Motor Control: Reduces overall power consumption by matching motor output power to actual load requirements dynamically.
Durable IP31 Enclosure: Protects internal drive electronics in standard indoor control panel environments.
User-Friendly Keypad Interface: Simplifies initial commissioning, parameter setup, and fault diagnostics without requiring extra software.
Comprehensive System Safeguards: Protects motor windings against short circuits, current spikes, and thermal overloading.
Due to its precise sensorless vector regulation and compact design, the Lenze ESMD222L4XA Frequency Inverter Drive is widely used across multiple industrial sectors:
Conveyor Belts & Material Transport: Delivers smooth acceleration and deceleration routines to prevent material spillage during transport.
Industrial Pumps & Mixers: Ensures energy-efficient variable speed control and stable fluid mixing rates.
HVAC Air Handling & Ventilation Fans: Regulates fan speeds dynamically based on facility ventilation demands.
General Machinery Manufacturing: Functions as a reliable, cost-effective VFD baseline for OEM machine builders needing 2.2kW (3.0 HP) AC motor regulation.
The Lenze ESMD222L4XA Frequency Inverter Drive delivers a balanced combination of sensorless vector precision, 2.2kW output capacity, and native Modbus RTU connectivity, making it an efficient choice for 3-phase industrial motor control.
