High-performance industrial automation relies on precise motor speed regulation, energy efficiency, and seamless communication. The Lenze ESMD552L4TXA Frequency Inverter, a prominent model from Lenze’s trusted SMVector series, is engineered to manage 3-phase AC motors with exceptional torque stability and operational reliability.

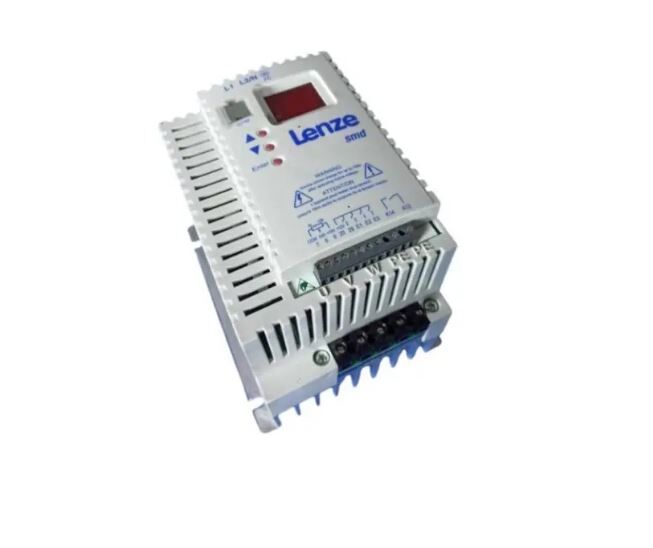

The Lenze ESMD552L4TXA Frequency Inverter is a versatile Variable Frequency Drive (VFD) designed for 3-phase 380–480V AC power systems. Delivering an output power rating of 5.5 kW (7.5 HP), this drive regulates motor speed and torque across an output frequency spectrum from 0 to 500 Hz.
Encased in an IP31 (NEMA 1) rated enclosure, it supports both standard V/Hz control and advanced sensorless vector control. With built-in Modbus RTU communication and an intuitive keypad interface, it ensures fast commissioning and clean control panel installation.
To assist system integrators, plant engineers, and panel builders, below is the comprehensive technical overview for quick evaluation:
| Technical Parameter | Specification Value / Detail |
| Brand / Manufacturer | Lenze |
| Drive Family | SMVector Series |
| Model Number | ESMD552L4TXA |
| Power Output Rating | 5.5 kW / 7.5 HP |
| Input Supply Voltage | 3-Phase 380 V to 480 V AC |
| Output Frequency Range | 0 Hz to 500 Hz |
| Control Methods | Sensorless Vector Control & V/Hz Control |
| Enclosure Rating | IP31 / NEMA 1 (Indoor Panel Mounting) |
| Operating Temperature | Up to 50°C (derating may apply above limit) |
| Standard Communication | Modbus RTU (Standard); Optional Fieldbus Modules |
| Protection Safeguards | Overload, Overheating, and Electrical Fault Protection |
The operational framework of the Lenze ESMD552L4TXA Frequency Inverter ensures smooth process control and motor efficiency:
Precision Power Conversion: Converts incoming utility AC power into adjustable output voltage and frequency, directly matching motor output to real-time process demand.
Dual Control Algorithms:
V/Hz Control: Provides balanced voltage and frequency ratios for basic industrial drives.
Sensorless Vector Control: Maintains tight speed regulation and dynamic torque response without requiring encoder feedback devices.
Smooth Operational Ramps: Enables customizable acceleration and deceleration profiles to protect gearboxes, drive belts, and couplings from mechanical shock.
Modbus RTU Integration: Connects directly to plant networks for centralized speed control, status monitoring, and automated fault reporting.
Integrating the Lenze ESMD552L4TXA Frequency Inverter into industrial control panels offers several advantages:
Robust 5.5kW / 7.5HP Output: Delivers steady drive power for medium-to-heavy industrial motor applications.
Broad Output Frequency Spectrum (0–500 Hz): Accommodates standard industrial induction motors as well as high-speed machinery.
Energy-Optimized Performance: Reduces electrical energy consumption by matching motor load requirements dynamically.
Durable IP31 Enclosure: Protects internal drive electronics in standard indoor control panel environments.
User-Friendly Keypad Interface: Simplifies routine setup, parameter adjustments, and diagnostic checks.
Built-in Fault Protections: Protects motor windings against thermal overloads, current spikes, and line voltage fluctuations.
Due to its precise sensorless vector regulation and compact design, the Lenze ESMD552L4TXA Frequency Inverter is widely used in various industrial sectors:
Conveyor Systems & Material Handling: Provides smooth acceleration/deceleration routines for material transport belts.
Industrial Pumps & Mixers: Ensures energy-efficient variable speed control and stable fluid mixing rates.
HVAC Air Handling & Ventilation Fans: Regulates fan speeds dynamically based on facility airflow demand.
General Machinery Manufacturing: Serves as a reliable, cost-effective VFD baseline for machine builders needing 5.5kW AC motor regulation.
The Lenze ESMD552L4TXA Frequency Inverter combines compact housing, sensorless vector accuracy, and native Modbus RTU connectivity, making it an efficient choice for 5.5kW industrial AC motor control applications.
