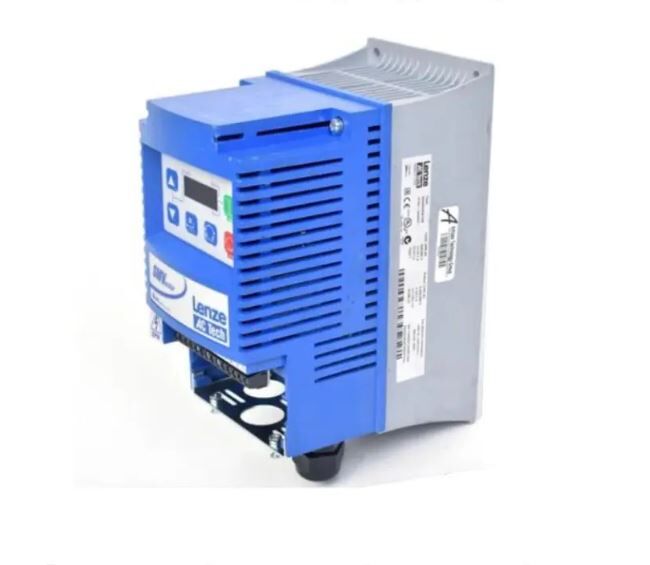

Modern industrial automation depends heavily on reliable, energy-efficient, and easy-to-integrate motor speed control devices. The Lenze ESV222N04TXB Frequency Inverter, an established model from Lenze’s trusted SMVector series, is engineered to provide precise speed and torque regulation for 3-phase AC motors across various commercial and industrial setups.
The Lenze ESV222N04TXB Frequency Inverter is a versatile Variable Frequency Drive (VFD) operating on a 3-phase 380–480V AC power input. Capable of delivering 2.2 kW (3 HP) of output power, this unit adjusts output supply frequency up to 500 Hz to control AC motor dynamics accurately.
Housed in an IP31 (NEMA 1) rated enclosure, this inverter uses sensorless vector control technology, offering high torque stability, Modbus communication compatibility, and seamless integration for indoor control panels.
To assist system integrators, electrical technicians, and plant engineers, below is the comprehensive specification overview for quick reference:
| Technical Parameter | Specification Value / Detail |
| Brand / Manufacturer | Lenze |
| Product Series | SMVector Series |
| Model Number | ESV222N04TXB |
| Rated Output Power | 2.2 kW / 3.0 HP |
| Input Supply Voltage | 3-Phase 380 V to 480 V AC |
| Output Frequency Spectrum | 0 Hz to 500 Hz |
| Primary Control Algorithm | Sensorless Vector Control |
| Enclosure Protection Class | IP31 / NEMA 1 (Indoor Protection) |
| Operating Temperature | Up to 50°C (with optional derating) |
| Communication Support | Integrated Modbus Protocol |
| Internal Safety Features | Overload, Overcurrent, and Thermal Protection |
Understanding the operational intelligence behind the Lenze ESV222N04TXB Frequency Inverter helps optimize motor system performance:
Precision Voltage & Frequency Adjustment: Converts fixed 3-phase utility grid power into customizable AC output voltage and frequency to suit exact motor load requirements.
Sensorless Vector Control Intelligence: Regulates motor speed and torque dynamically without needing speed feedback devices or shaft encoders, ensuring tight speed holding even under changing load demands.
Smooth Motion Ramps: Enables smooth motor acceleration, deceleration, and torque management to reduce mechanical wear on connected gearboxes and couplings.
Modbus Network Integration: Connects directly into factory Modbus architectures, allowing centralized monitoring, remote speed adjustment, and diagnostic tracking.
Integrating the Lenze ESV222N04TXB Frequency Inverter into control cabinets provides several key operational benefits:
2.2kW / 3HP Power Output: Delivers steady drive power for medium-duty motor applications.
High Output Frequency Range (0–500 Hz): Accommodates standard industrial induction motors as well as high-speed motor applications.
Energy-Efficient Operation: Automatically matches motor output power to real-time process demands, cutting power draw during partial-load conditions.
Durable IP31 Enclosure: Protects internal electronics against dust and vertical water drops in indoor panel installations.
Built-in Diagnostics & Safety Protection: Equipped with internal protection circuits against overcurrent, line voltage spikes, and thermal overloading.
Due to its accurate sensorless vector regulation and compact layout, the Lenze ESV222N04TXB Frequency Inverter is widely utilized across multiple industries:
Conveyor Networks & Material Transport: Delivers smooth start/stop sequences and precise speed adjustments for material movement.
Industrial Pumps & Mixers: Optimizes energy consumption and mixing speeds in fluid and chemical processing equipment.
HVAC Fans & Ventilation Systems: Regulates airflow and fan speeds dynamically based on facility demand.
General Industrial Machinery: Serves as a reliable, cost-effective VFD baseline for OEM machine builders needing 2.2kW motor control.
The Lenze ESV222N04TXB Frequency Inverter offers a strong balance of sensorless vector accuracy, Modbus networking compatibility, and energy-efficient motor performance, making it an efficient choice for 2.2kW industrial applications.
