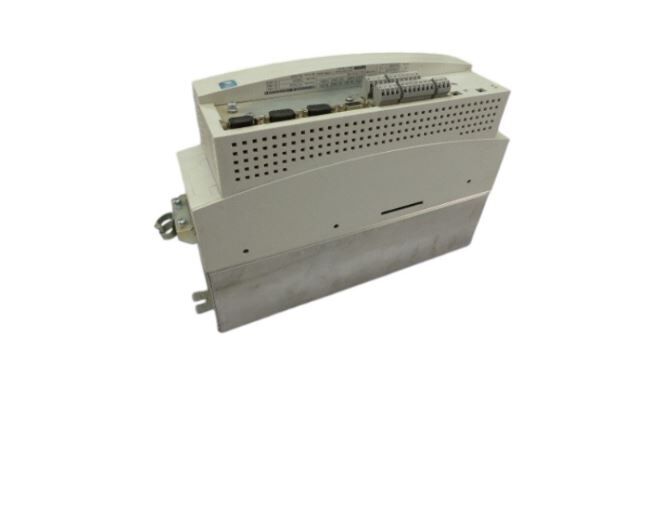

Industrial automation systems require high-precision motor control, energetic efficiency, and seamless networking capabilities. The Lenze EVF9324EV Frequency Inverter, a prominent member of Lenze’s established 9300 series, is engineered to manage three-phase asynchronous motors with exceptional speed, accuracy, and operational stability.
The Lenze EVF9324EV Frequency Inverter is a versatile Variable Frequency Drive (VFD) designed for complex motion control and automated factory environments. By adjusting the supply voltage and frequency delivered to connected motors, it allows precise regulation of speed and torque across continuous production processes.
As part of the Lenze 9300 drive platform, this unit provides programmable logic, dynamic braking performance, and modular connectivity for modern industrial networks.
Below is the summary of key system parameters and technical features for the Lenze 9300 series drive platform:
| Parameter / Feature | Detail / Value |
| Manufacturer / Brand | Lenze |
| Drive Series | 9300 Series |
| Model Number | EVF9324EV |
| Product Type | Variable Frequency Drive (VFD) |
| Compatible Motor Type | Asynchronous AC Motors |
| Series Power Range | 0.37 kW to 75 kW |
| Control Modes | V/f Control, Sensorless Vector Control, Closed-Loop Control |
| Protection Rating & Features | Short Circuit, Overvoltage, Undervoltage, Overheating, Overcurrent |
| Communication Protocols | PROFIBUS, CANopen (via optional expansion modules) |
| Dynamic Braking | Built-in chopper support for braking resistors |
Understanding the operational intelligence behind the Lenze EVF9324EV Frequency Inverter helps engineers optimize machine efficiency:
Precision Voltage & Frequency Adjustment: The VFD converts incoming supply power into customized output AC voltage and frequency, ensuring smooth speed transitions.
Multiple Control Algorithms:
V/f Control: Provides linear speed regulation for standard fans, pumps, and continuous drives.
Vector Control: Maintains high torque delivery even at low operational speeds or under sudden load changes.
Closed-Loop Feedback: Pairs with encoder feedback modules for precise positioning and tight speed holding.
Programmable Ramps & Profiles: Allows custom configuration of acceleration, deceleration, and torque limits to protect mechanical equipment.
Energy Optimization: Reduces overall power consumption by matching motor output directly to real-time process demand.
Integrating the Lenze EVF9324EV Frequency Inverter into your panel layout delivers several operational advantages:
Compact Enclosure Design: Slim housing maximizes space utilization inside high-density control panels.
Integrated Protection Safeguards: Protects motor windings and internal circuitry against short circuits, line voltage surges, thermal overloads, and overcurrent conditions.
Modular Communication Flexibility: Easily connects to plant-wide automation architectures using fieldbus modules like CANopen or PROFIBUS.
Effective Thermal Management: Built with an optimized cooling airflow design to preserve component lifespan under continuous duty cycles.
Rapid Dynamic Braking: Built-in braking capabilities ensure quick and controlled deceleration for high-inertia motor loads.
Due to its high control accuracy and flexible power range (0.37 kW to 75 kW across the series), the Lenze EVF9324EV Frequency Inverter is widely deployed across diverse sectors:
Conveyor Systems & Material Handling: Ensures smooth start/stop routines and adjustable line speeds.
Pumps & Industrial Ventilation Fans: Reduces energy costs through demand-based variable speed operation.
Packaging & Textile Machinery: Synchronizes multi-axis production systems for precise processing and wrapping.
Automated Factory Processing: Offers reliable general motor speed control for machine builders and plant engineers.
The Lenze EVF9324EV Frequency Inverter combines programmable drive intelligence, robust protection mechanisms, and modular automation integration. It stands as an ideal choice for machinery builders and plant technicians seeking dependable asynchronous motor control.
