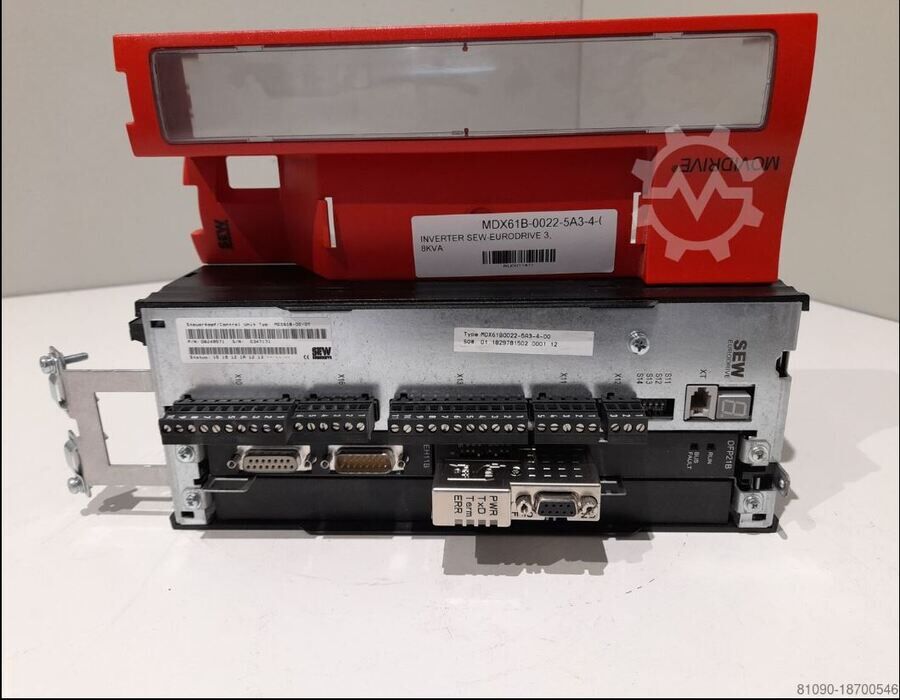

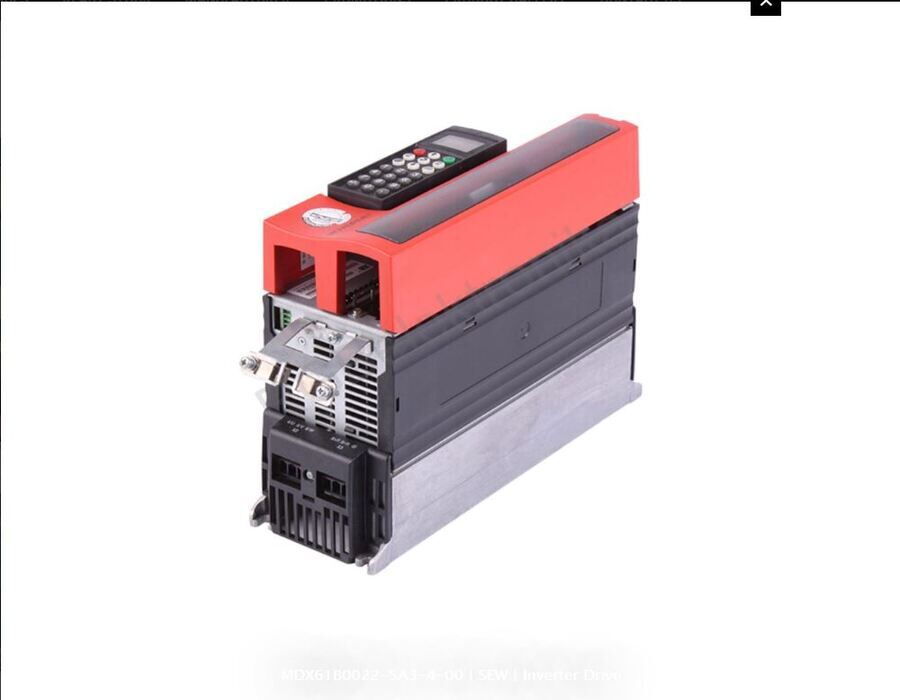

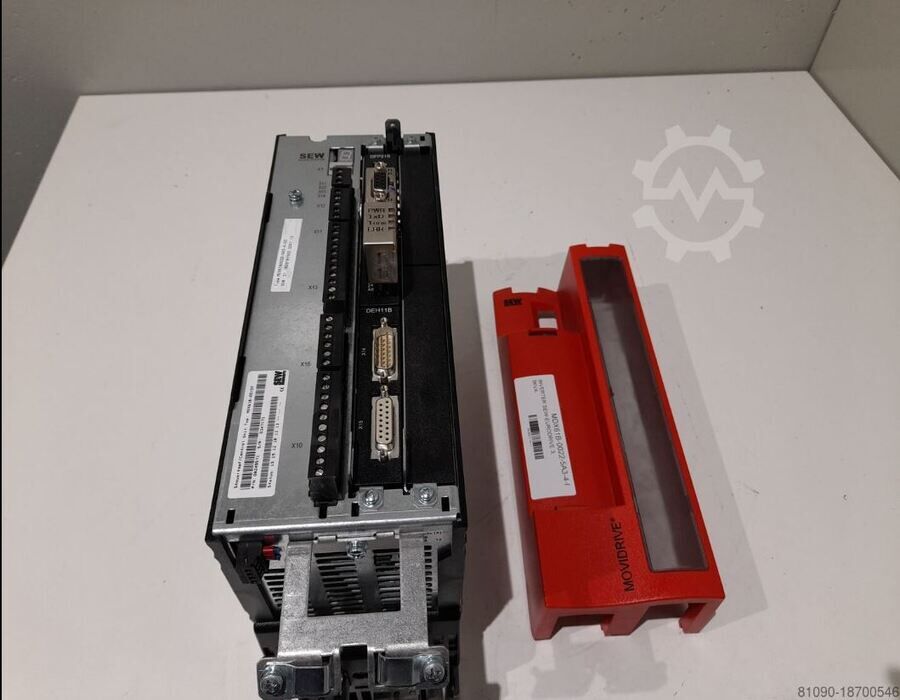

In modern automated manufacturing, handling overhauling loads and rapid deceleration requires a variable frequency drive with active braking capabilities. The SEW MOVIDRIVE B MDX61B0022-5A3-4-00 VFD delivers robust performance for light-to-medium motor control tasks. Designed for 2.2 kW motors operating on a 3-phase 380–500V AC power supply, this Size 1 Version B drive combines high power density with dynamic regenerative braking features.
Engineered on the versatile MDX61 platform, the SEW MOVIDRIVE B MDX61B0022-5A3-4-00 VFD excels in applications requiring continuous torque control during direction reversals and stopping cycles.
4-Quadrant Capability: Manages full motor torque across both forward and reverse rotation directions while driving or braking.
Integrated Brake Chopper: Handles regenerative energy from deceleration without requiring external dynamic braking chopper circuits.
Line-Side EMC Suppression: Built-in Class C2 radio interference filtering protects adjacent electrical components from noise in panel installations.
Space efficiency and modular hardware scalability make the SEW MOVIDRIVE B MDX61B0022-5A3-4-00 VFD an ideal component for control cabinet integration.
Compact Enclosure Dimensions: Measures 105 × 314 × 234 mm and weighs 3.5 kg, optimizing space inside standard electrical enclosures.
Expandable Option Slots: Supports installable fieldbus cards, encoder feedback interfaces, and additional I/O expansion modules.
Industrial Durability: Built to withstand continuous industrial operation while maintaining precise motor speed regulation.
Hoisting & Lifting Systems: Provides safe, controlled deceleration during vertical load lowering.
Stop-Start Conveyors: Manages rapid, repeated braking cycles on high-speed material handling transport lines.
Dynamic Packaging Machinery: Delivers smooth speed transition and precise motor shaft positioning.
Reversing Machine Tools: Supports overhauling loads and bidirectional spindle or axis movements.
| Parameter | Specification Details |
| Manufacturer / Product Line | SEW-Eurodrive / MOVIDRIVE® B Series |
| Model / Product Number | SEW MOVIDRIVE B MDX61B0022-5A3-4-00 |
| Recommended Motor Power | 2.2 kW (3.0 HP) |
| Supply Voltage | 3-Phase 380–500 V AC |
| Quadrants / Braking | 4-Quadrant Operation with Built-in Brake Chopper |
| EMC Suppression | Line-Side Class C2 Filtering |
| Drive Frame Size | Size 1 (105 × 314 × 234 mm / 3.5 kg) |
