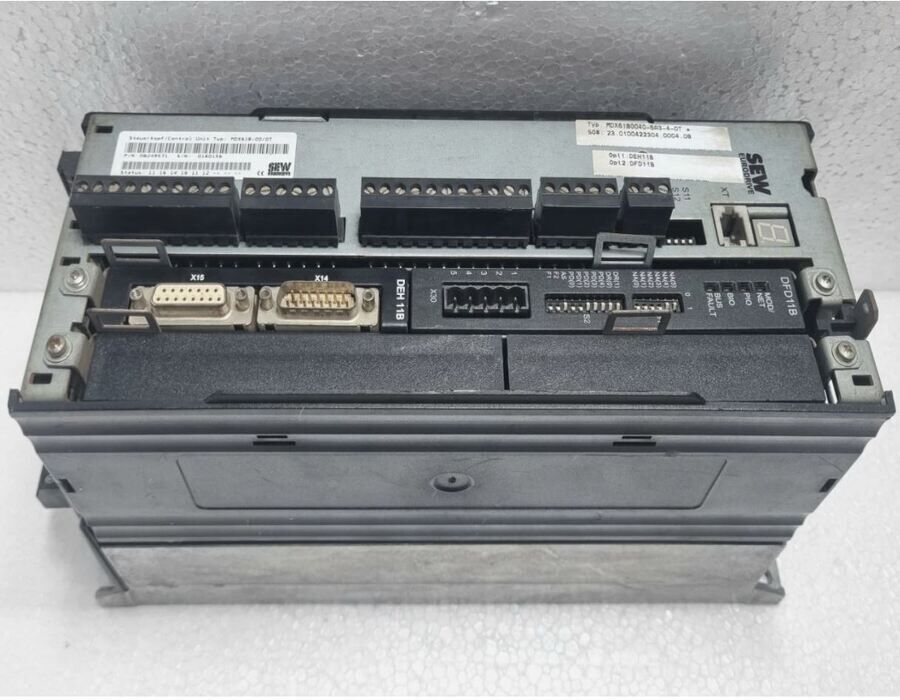

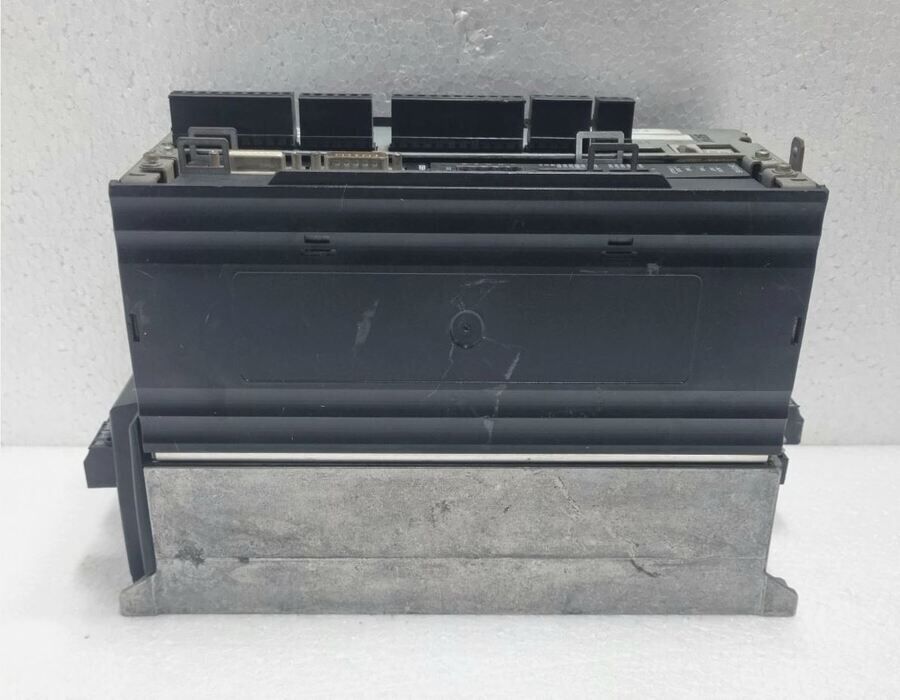

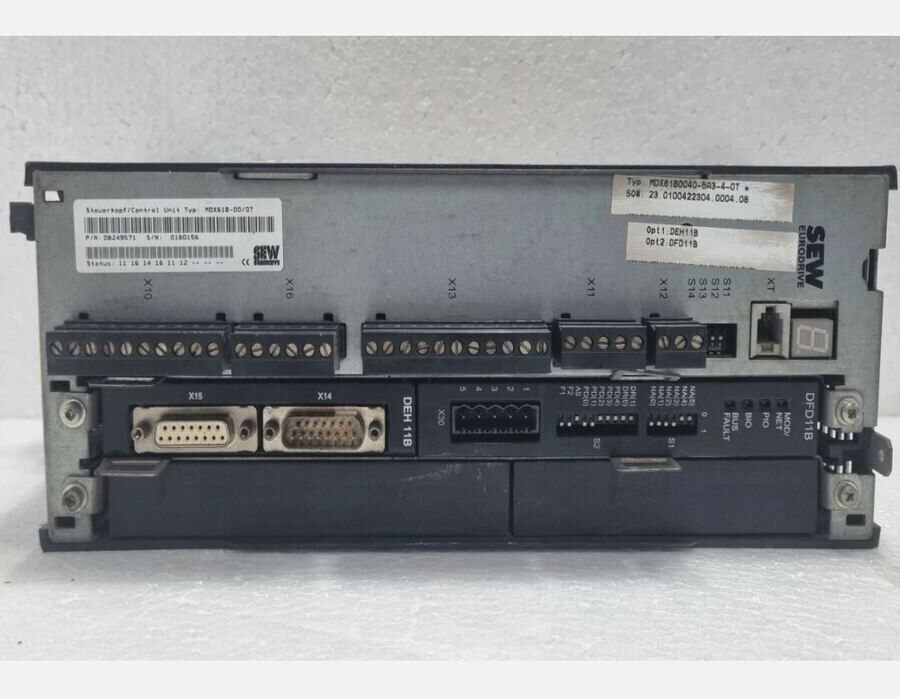

Demanding industrial motion control systems require intelligent drive processing to eliminate the need for complex external controllers. The SEW MOVIDRIVE MDX61B0040-5A3-4-0T Inverter Drive is an application-version inverter engineered for high-precision positioning, winding, and multi-axis synchronization. Operating on a 3-phase 380–500V AC power supply (±10%), it delivers a rated output current of 9.5A with an apparent output power of 6.6 kVA across a wide frequency range of 0 to 599 Hz.
The “0T” designation highlights SEW-Eurodrive’s integrated application-version technology, separating the SEW MOVIDRIVE MDX61B0040-5A3-4-0T Inverter Drive from standard frequency inverters.
Electronic Cam & Synchronous Operation: Features built-in electronic camming and internal synchronous functions for smooth multi-axis speed and position matching.
MOVITOOLS® MotionStudio Integration: Provides direct access to standardized application modules, allowing fast commissioning through guided parameter entry instead of custom code writing.
Decentralized Architecture: Handles complex motion sequences directly within the drive, reducing central PLC processing load and simplifying wiring setups.
Built to handle both standard industrial motors and specialized high-speed machinery, the SEW MOVIDRIVE MDX61B0040-5A3-4-0T Inverter Drive ensures precise power delivery.
Broad Output Frequency (0–599 Hz): Supports high-speed motor applications with precise frequency resolution.
Stable Power Input & Output: Draws a rated input current of 8.64A at 50/60 Hz to output a reliable 9.5A continuous motor current.
Controlled Operating Range: Operates effectively within an ambient temperature window of 0°C to +40°C, ideal for standard industrial control panels.
Positioning & Rotary Tables: Executes precise index positioning without external motion controllers.
Winding & Unwinding Equipment: Manages smooth tension regulation using pre-configured software modules.
Packaging & Conveyor Automation: Delivers synchronized multi-belt speed matching and precise stop positioning.
OEM Custom Machine Building: Accelerates time-to-market using pre-validated application modules.
| Parameter | Specification Details |

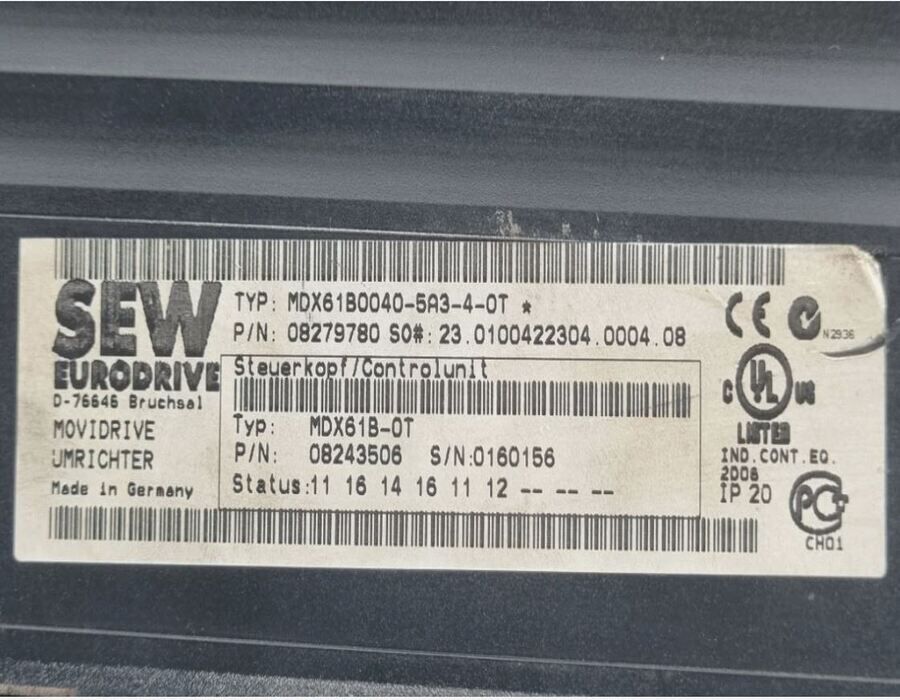

| Model / Variant | SEW MOVIDRIVE MDX61B0040-5A3-4-0T (Application Version) |
| Input Supply Voltage | 3-Phase 380–500 V AC (±10%), 50/60 Hz |
| Rated Input / Output Current | 8.64 A Input / 9.5 A Output |
| Apparent Output Power | 6.6 kVA |
| Output Frequency Range | 0 to 599 Hz |
| Technology Functions | Electronic Cam, Internal Synchronous Operation, MOVITOOLS® |
| Ambient Temperature | 0°C to +40°C |
