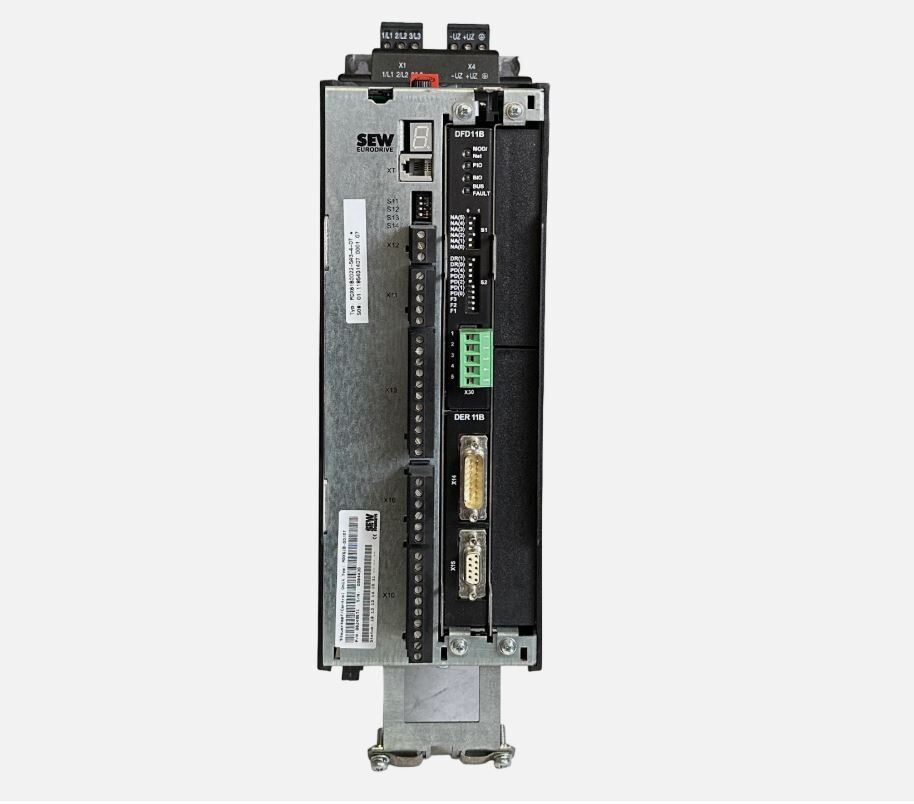

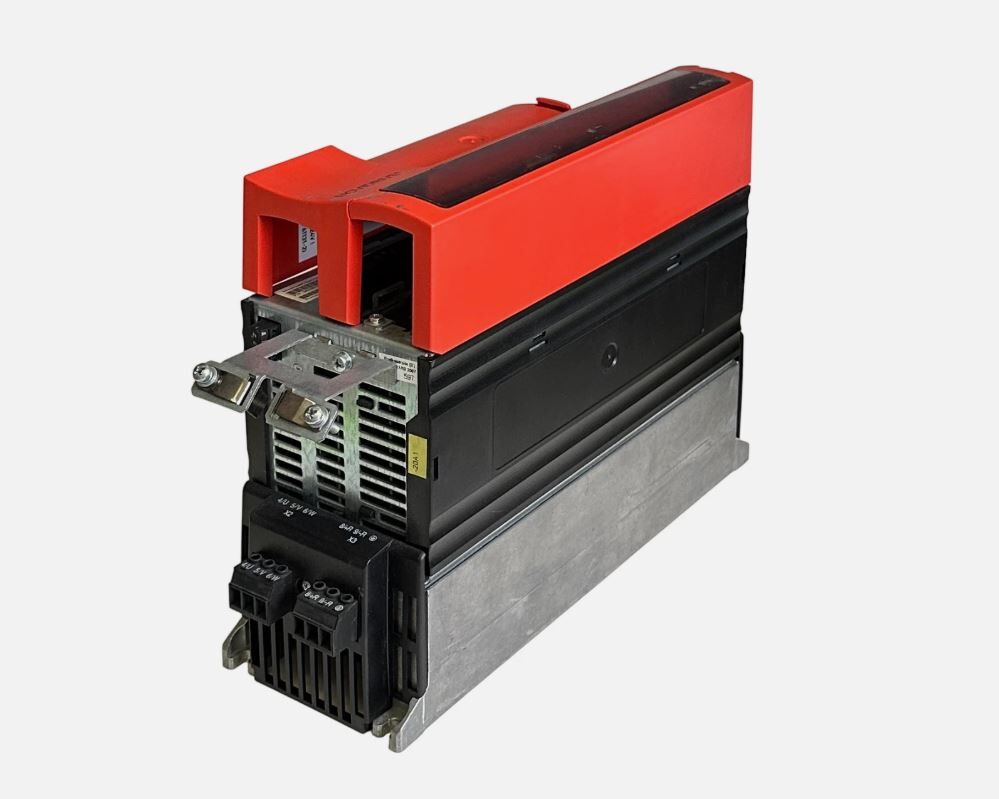

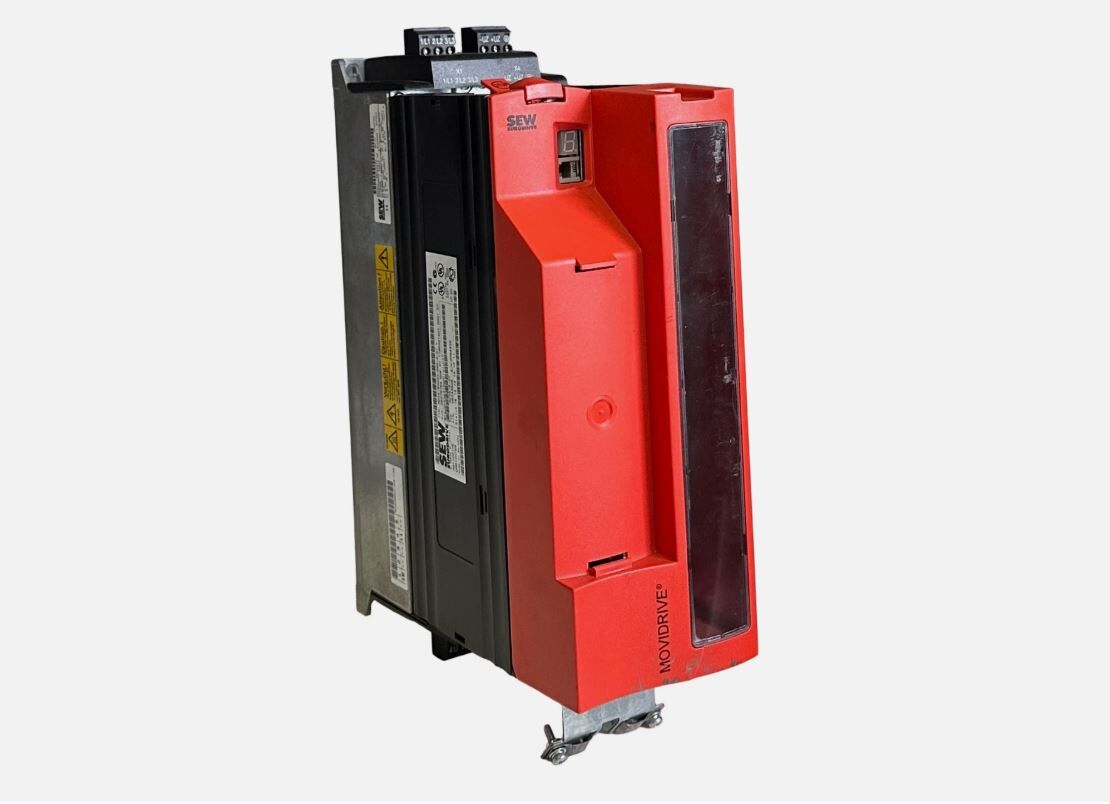

Finding reliable replacement components or expanding existing industrial control systems requires pre-tested equipment that minimizes setup time. The Used SEW MOVIDRIVE MDX61B0022-5A3-4-0T Inverter offers an excellent-condition, ready-to-deploy solution for precise motion applications. Designed for a 2.2 kW motor on a 3-phase 380–500V AC power supply, this unit comes pre-configured with essential fieldbus and feedback option cards to speed up installation.
A major advantage of this Used SEW MOVIDRIVE MDX61B0022-5A3-4-0T Inverter is its pre-installed expansion hardware, saving time and sourcing costs for engineers.
Pre-Installed Option Cards: Includes the DFD11B DeviceNet fieldbus card for direct network communication and the DEH11B encoder card supporting Incremental and HIPERFACE® feedback.
4-Quadrant Regeneration: Built-in dynamic brake chopper manages continuous driving and controlled regenerative deceleration without external hardware.
Class C2 EMC Filter: Integrated line-side radio interference suppression ensures reliable electrical performance in industrial control panels.
As an application version (“0T”) within the MOVIDRIVE® MDX60B/61B series, the Used SEW MOVIDRIVE MDX61B0022-5A3-4-0T Inverter provides advanced motion control functions.
Onboard Electronic Camming: Built-in electronic cam and internal synchronous operation capabilities enable complex multi-axis motion profiling.
MOVITOOLS® MotionStudio Access: Supports pre-built application modules for guided setup of positioning, winding, and rotary table applications.
Certified Restart Safety: Features restart protection compliant with EN954-1 Safety Category 3 for safe stopping.
Multi-Motor Compatibility: Controls standard AC asynchronous induction motors, permanent magnet synchronous motors, and linear motors.
DeviceNet Industrial Networks: Integrates into legacy and modern DeviceNet-based automation architectures.
Hoisting & Lifting Machinery: Manages regenerative braking loads safely using its integrated 4Q brake chopper.
Positioning & Winding Systems: Executes precise closed-loop speed and position control using encoder feedback.
Legacy Drive Replacement: Ideal for retrofitting, repairing, or expanding existing SEW MOVIDRIVE lines without additional programming.
| Parameter | Technical Details |

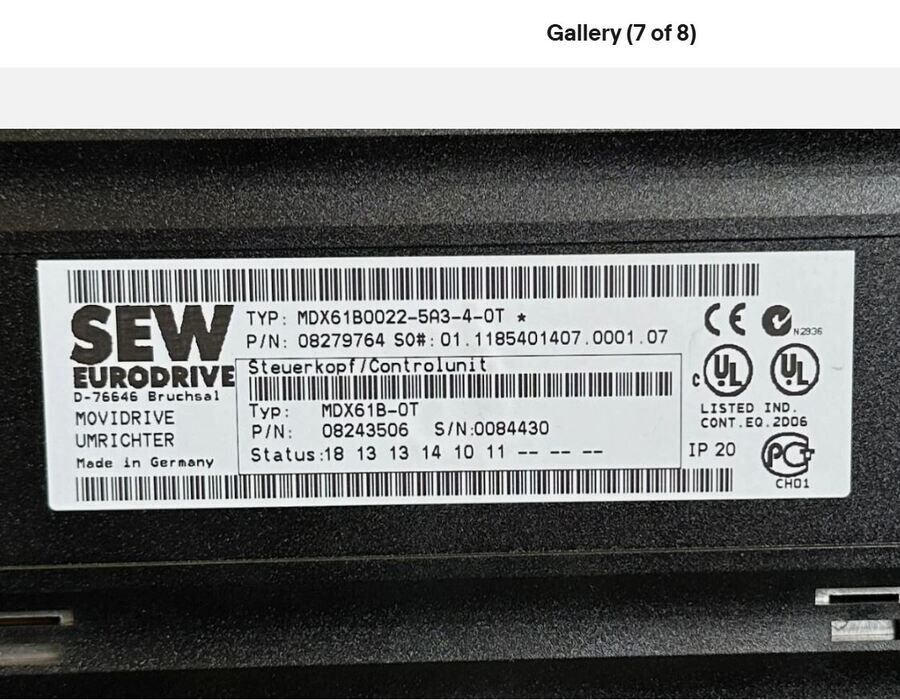

| Model / Variant | SEW MOVIDRIVE MDX61B0022-5A3-4-0T (Application Version) |
| Condition | Used (Excellent Condition) |
| Motor Power Rating | 2.2 kW (3.0 HP) |
| Input Power Supply | 3-Phase 380–500 V AC |
| Dynamic Braking | 4-Quadrant Operation with Built-in Brake Chopper |
| Pre-Installed Card 1 | DFD11B DeviceNet Fieldbus Card (Part No. 08243506) |
| Pre-Installed Card 2 | DEH11B Encoder Input Card (Part No. 08243492) |
| Safety Standard | EN954-1 Category 3 Restart Protection |
